Wind Powers New Ally: Fulltech Electrics AC Cooling Fan Leads Energy Innovation
In recent years, global attention has been consistently focused on efforts to address rapid global warming and reduce carbon emissions. The substantial carbon dioxide and air pollution generated by coal and natural gas power generation have accelerated governments worldwide in transitioning to renewable energy sources, making the development of green energy a crucial issue.
In the field of green energy, wind power is an extremely important and economically valuable energy source for Taiwan, surrounded by the sea on all sides. Wind power generation is not only an efficient means of energy production but also an environmentally friendly and sustainable energy option. Wind energy is a 100% clean renewable energy source, extremely friendly to the environment. During operation, wind turbines do not produce air or water pollution, resulting in minimal impact on the ecological environment. This is crucial for protecting human health and sustaining economic activities. Additionally, since the acquisition cost of wind energy is almost zero, the operational costs of wind turbines after construction are relatively low.
However, the related equipment units required for wind power generation must be set up in harsh environments such as coastal areas with high humidity, strong winds, and high salinity, and require long-term stable operation. In such extreme environments, ensuring the efficient operation of equipment is crucial. AC cooling fans play a key role in this regard. Fulltech Electric's AC cooling fan is an indispensable part of the energy industry, effectively cooling wind power generation equipment to ensure stable operation under extreme conditions. As a leading fan manufacturer, Fulltech Electric is committed to providing high-quality products and contributing to the development of the energy industry.
Types of machines used in wind power generation
The functional specifications of AC fan UF-15KM are as follows. Class F high temperature resistant specifications are also available.
Specification |
15KM23BTH |
Size |
172*150*55 mm |
Rated Voltage |
230V |
Frequency |
50/60 Hz |
Input Power |
42 W |
Rated Current |
0.25/0.23 A |
Locked Current |
0.43/0.37 A |
Speed |
2800/3250 RPM |
Maximum Air Flow |
5.5/6.5 m3/min. |
Maximum Air Flow |
195/230 CFM |
Maximum Pressure |
14/16 mmH2O |
Maximum Pressure |
0.55/0.63 InchH2O |
Noise |
49/53 dB |
Weights |
1.1kg |
Certification |
UL、TUV |
The functional specifications of AC fan UF-200BMB are as follows.
Specification |
200BMB23H1C2A |
Size |
225*225*80 mm |
Rated Voltage |
230V |
Frequency |
50/60 Hz |
Input Power |
74 /80 W |
Rated Current |
0.29/0.35 A |
Locked Current |
0.50 A |
Speed |
2550/2800 RPM |
Maximum Air Flow |
15/17 m3/min. |
Maximum Air Flow |
530/600 CFM |
Maximum Pressure |
17/14 mmH2O |
Maximum Pressure |
0.67/0.55 InchH2O |
Noise |
59/61 dB |
Weights |
2.1kg |
Certification |
UL、TUV |

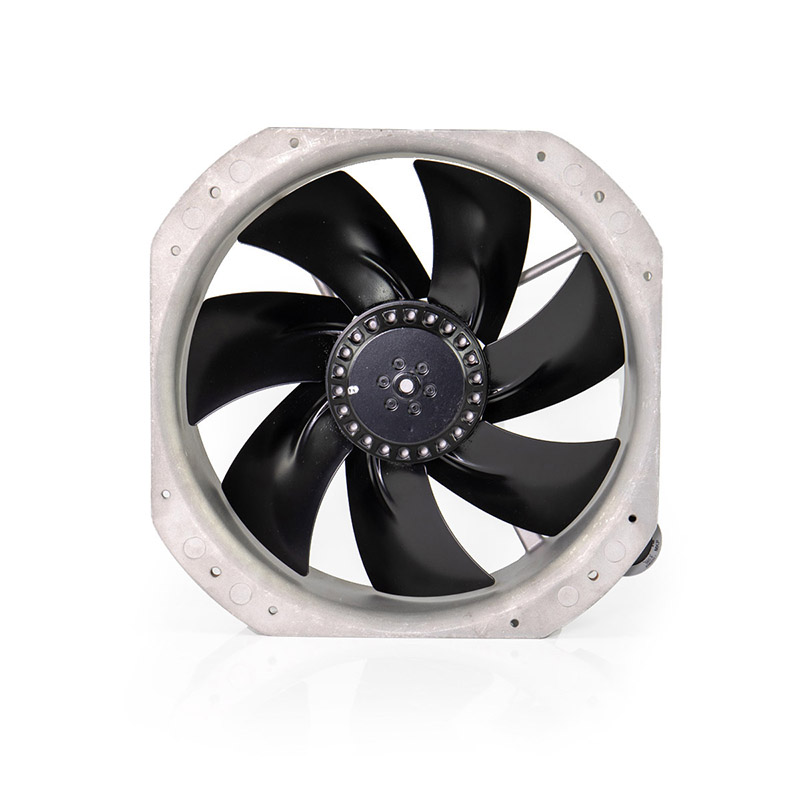

The functional specifications of AC fan UF-250BMB are as follows.
Specification |
250BMB23H1C2A |
Size |
280*280*80 mm |
Rated Voltage |
230V |
Frequency |
50/60 Hz |
Input Power |
119/158 W |
Rated Current |
0.59/0.82 A |
Locked Current |
0.91 A |
Speed |
2550/2700 RPM |
Maximum Air Flow |
31/32 m3/min. |
Maximum Air Flow |
1090/1130 CFM |
Maximum Pressure |
20/16.5 mmH2O |
Maximum Pressure |
0.78/0.65 InchH2O |
Noise |
68/70 dB |
Weights |
2.8kg |
Certification |
UL、TUV |
Therefore, Fulltech Electric's AC cooling fan, combined with wind power generation technology, not only enhances the reliability and efficiency of the energy industry but also makes positive contributions to environmental protection and sustainable development. This innovative combination promotes the development of green energy and advances global environmental conservation efforts.
For further information regarding fan specifications, please refer to the provided complete catalog in the file download section or feel free to contact us!
Thank you for choosing Fulltech Electric. We look forward to creating a brighter future together!
