Centrifugal Fan

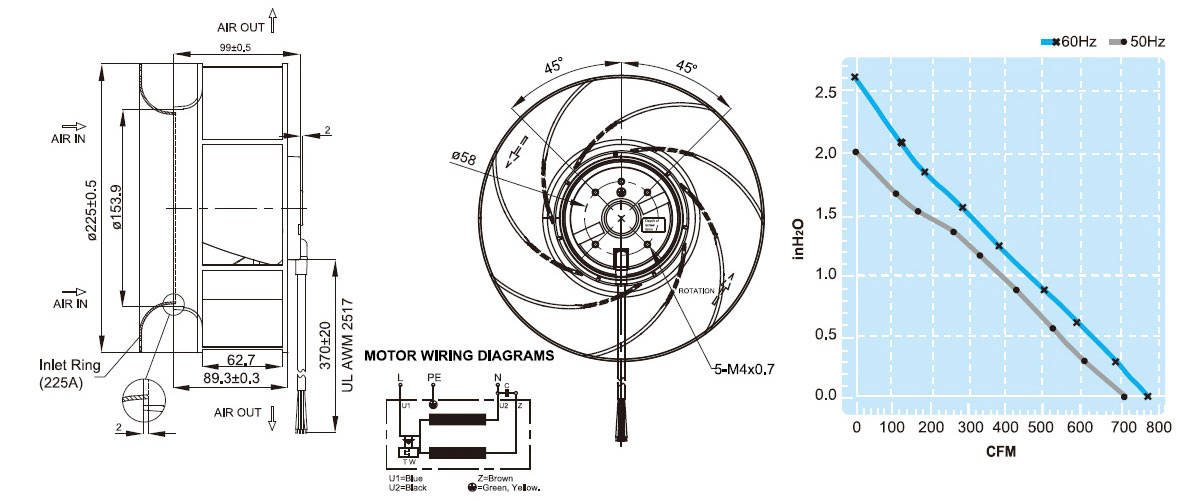

UF225(99)APA Series

Frame/Housing: Aluminum die-casting
Impeller: Plastic or steel
Bearing System: Ball bearing
Motor: Shaded pole or capacitor start-run
Protection: Impedance-Protected or Thermally-Protected or Electronically-Protected
Insulation Resistance: Above 100MΩ, DC500V.
Dielectric withstand voltage AC 1,500V (50/60Hz) one minute
Life Expectancy: Ball bearing: Over 40,000 hr. (at 40℃)
Safety Approval: CUL, CE, TUV, either UL or ETL.
Description of Model No.
UF 220 A P A 11 H1 C 2 A
1 2 3 4 5 6 7 8 9 10


Get Latest Price
UF225(99)APA11H1C2A UF225(99)APA23H1C2A
Rated Voltage 115 V 230 V
Frequency 50/60 Hz 50/60 Hz
Input Power 128/160 W 126/157 W
Rated Current 1.16/1.41 A 0.57/0.7 A
Locked Current 2.22/2.3 A 1.14/1.15 A
Speed 2650/2950 RPM 2650/2950 RPM
Maximum Air Flow 20/22 m3/min. 20/22 m3/min.
Maximum Air Flow 700/770 CFM 700/770 CFM
Maximum Pressure 51/66 mmH2O 51/66 mmH2O
Maximum Pressure 2/2.6 InchH2O 2/2.6 InchH2O
Noise 69/71 dB 69/71 dB
Weights 2.3 kg 2.3 kg
