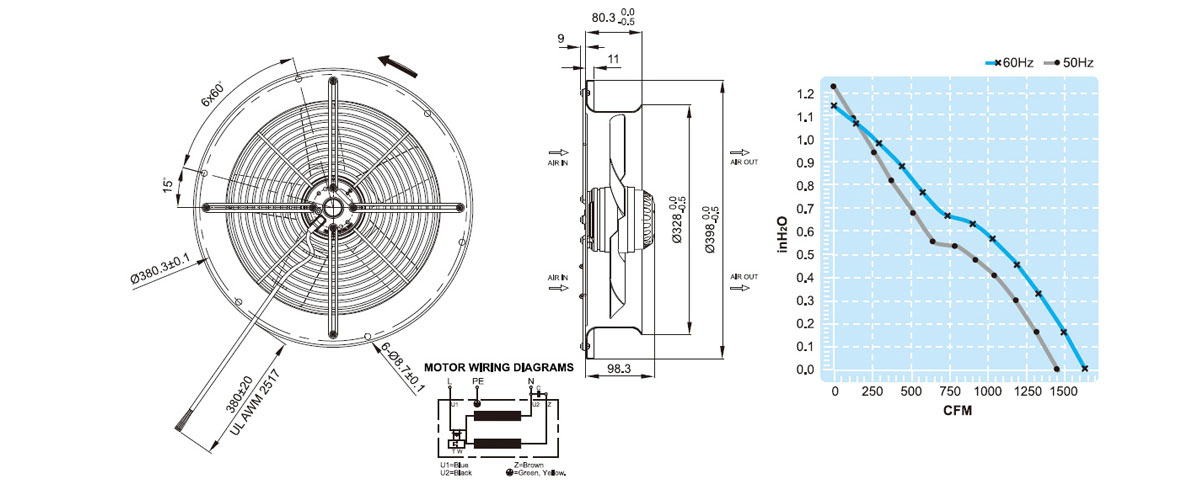

External Rotor Axial Fan

UF300BNA Series

Frame/Housing: Aluminum die-casting
Impeller: Plastic or steel
Bearing System: Ball bearing
Motor: Shaded pole or capacitor start-run
Protection: Impedance-Protected or Thermally-Protected or Electronically-Protected
Insulation Resistance: Above 100MΩ, DC500V.
Dielectric withstand voltage AC 1,500V (50/60Hz) one minute
Life Expectancy: Ball bearing: Over 40,000 hr. (at 40℃)
Safety Approval: CUL, CE, TUV, either UL or ETL.
Description of Model No.
UF 220 A P A 11 H1 C 2 A
1 2 3 4 5 6 7 8 9 10


Get Latest Price
UF300BNA11H1C2A UF300BNA23H1C2A
Rated Voltage 115 V 230 V
Frequency 50/60 Hz 50/60 Hz
Input Power 150/200 W 150/200 W
Rated Current 1.6/2.4 A 0.9/1.2 A
Locked Current 3.15/3.1 A 1.6/1.56 A
Speed 2650/2950 RPM 2650/2950 RPM
Maximum Air Flow 40.6/45.7 m3/min. 40.6/45.7 m3/min.
Maximum Air Flow 1435/1615 CFM 1435/1615 CFM
Maximum Pressure 31/29 mmH2O 31/29 mmH2O
Maximum Pressure 1.2/1.1 InchH2O 1.2/1.1 InchH2O
Noise 75/78 dB 75/78 dB
Weights 4.5 kg 4.5 kg
SAFETY APPROVAL
