Axial Fan
Get Latest Price

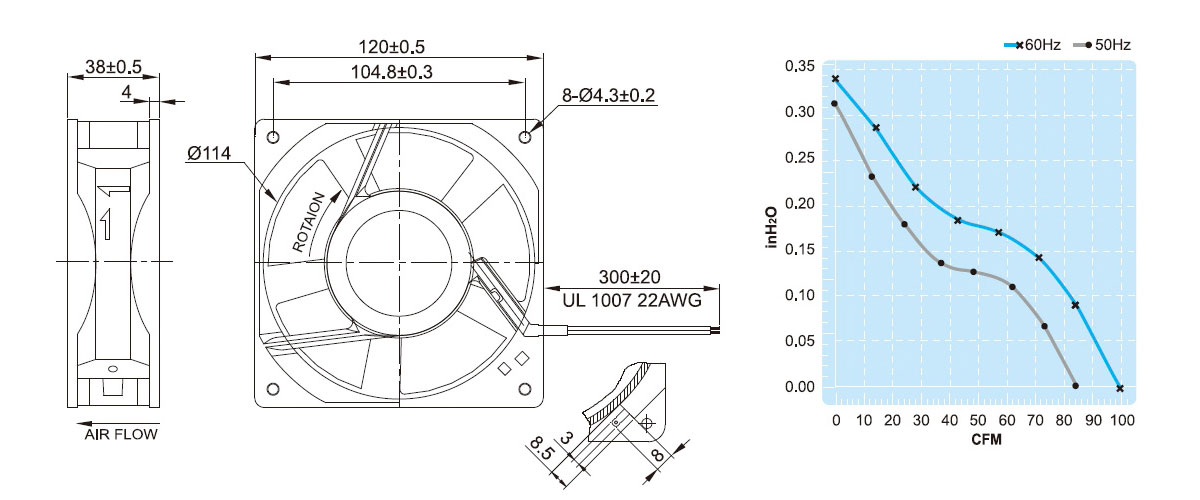

UF12AR Series
| Frame/Housing: | Aluminum die-casting | ||||||||||||||||||
| Impeller: | Plastic PBT PC,nylon or metal | ||||||||||||||||||
| Bearing System: | Ball bearing or sleeve bearing | ||||||||||||||||||
| Motor: | Shaded pole or capacitor start-run | ||||||||||||||||||
| Connection: | Lead wire or termnal type | ||||||||||||||||||
| Protection: | Impedance-Protected or Thermally-Protected | ||||||||||||||||||
| Dielectric withstand voltage: | Above 10MΩ, DC500V | ||||||||||||||||||
| Life Expectancy: |
Ball bearing:Over 40,000 hr.(at 40°C) Sleeve bearing:Over 15,000 hr.(at 40°C) |
||||||||||||||||||
| Safety Approval: | CUL, CE, TUV, either UL or ETL | ||||||||||||||||||
| Description of Model No. |
|
