特殊客制化服务

专业、细心、安心

特殊客制化服务
高性能交流散热风扇

高性能交流散热风扇,包括轴流扇、横流扇、外转式转子风扇、导管扇、吸顶扇等..

EC高效节能风扇

EC高效节能风扇相较较传统AC风扇节能50%以上,能突破AC风扇转速限制, 拥有更高效能的输出。

客制化散热风扇

本公司30年来专精于各式风扇研发能提供丰富专业经验,我们也提供各式客制化散热风扇的订制与研发。

整合性服务

我们可以协助办理相关产品保险、运送、海关、提示文件和品质检验,透过整合化服务让您更安心。

特殊客制化服务

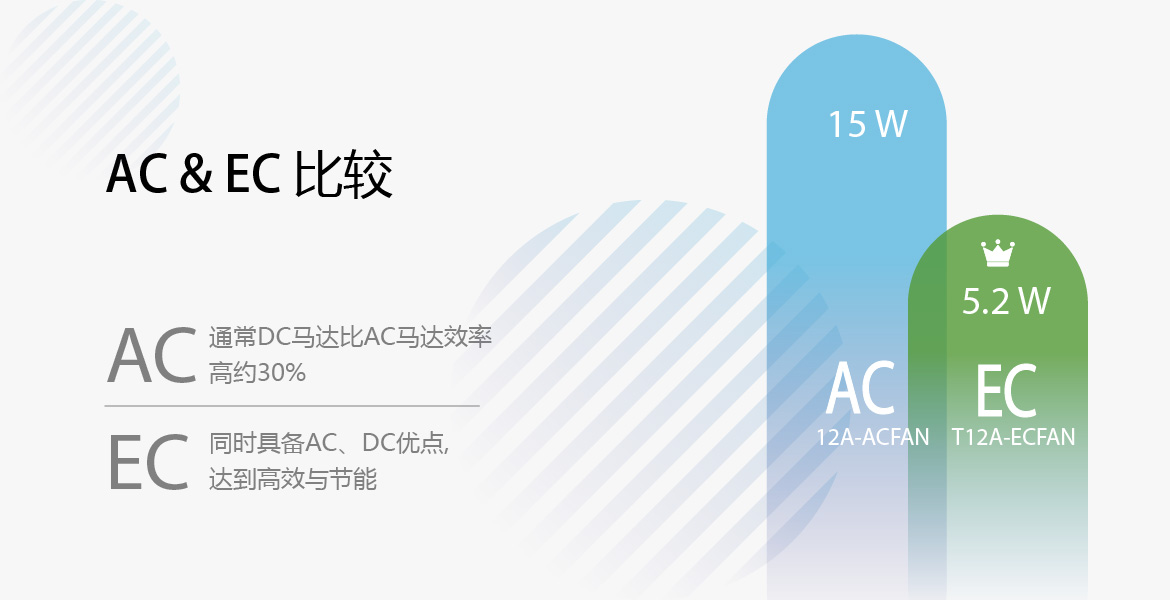

AC&EC比较表
AC通常DC馬達比AC馬達效率高約30%,EC同時具備AC、DC優點,達到高效與節能
差异点 AC 风扇 EC 风扇
马达运转方式 感应马达则是藉由AC输入电压来供电,并通过转子上的感应电流来产生磁场转动,但AC马达转速受电源频率固定,马达最高转速仅达3600rpm,且AC马达的效能比DC马达低 由电子驱动板控制的无刷直流马达,EC马达的转子包含永久性磁铁,而定子则有一组铜线圈,马达的转动透过电路板切换铜线圈中的相位来保持马达持续转动.
效能 通常DC马达比AC马达效率高约30% 具备AC、DC优点,达到高效与节能
特点 直接使用交流电启动马达较E C风扇耗电 可依客户需求客制化IP55、IP68防水防尘与 ATEX防爆防护或订制转速脉波输出、PWM调速及报警功能

特殊客制化服务

EC 防爆风扇

福佑研发特殊马达密封技术防止火花产生

防爆风扇可达到P68
防水防尘等级用在有可燃气体及易燃物之设备内如冷柜、冰箱。
ATEX model Description Size Safety Approval
T60B BPB0AM1D4A Axial fan, 230Vac, ball bearing 60x60x25mm, plastic impeller UL.CUL.TUV.ATEX
T92A BPB0AM1D4A Axial fan, 230Vac, ball bearing 92x92x38mm, plastic impeller UL.CUL.TUV.CE.ATEX
T12A BPB0AM1D4A Axial fan, 230Vac, ball bearing 120x120x38mm, plastic impeller UL.CUL.TUV.CE.ATEX
T15P BPB23M1D4A Axial fan, 230Vac, ball bearing 172x150x51mm, plastic impeller UL.CUL.TUV.ATEX

特殊客制化服务

防水防尘风扇
IP55等级防水防尘风扇
可防止水气侵入影响风扇寿命,适用于户外设备或高湿度环境。例如:LED看板、充电站等户外设备、捕鱼船。
Waterproof Model Description Size Safety Approval IP Rate
92A23BWHN Axial fan, 230Vac, ball bearing 92x92x38mm, plastic impeller ETL.TUV.CE IP55
92B23BWHN Axial fan, 230Vac, ball bearing 92x92x25mm, plastic impeller UUL.CUL.TUV.CE IP55
12A23BWHN Axial fan, 230Vac, ball bearing 120x120x38mm, plastic impeller UL.CUL.TUV.CE IP55
12B23BWHN Axial fan, 230Vac, ball bearing 120x120x25mm, plastic impeller UL.CUL.TUV.CE IP55
3A23BWHN Axial fan, 230Vac, ball bearing 127x127x38mm, plastic impeller UL.CUL.TUV.CE IP55
15P23BWHN Axial fan, 230Vac, ball bearing 172x150x51mm, plastic impeller UL.CUL.TUV.CE IP55
15PC23BWHN Axial fan, 230Vac, ball bearing 172x150x51mm, plastic impeller, capacitor start-run UL.CUL.TUV.CE IP55
15KC23BWHN Axial fan, 230Vac, ball bearing 172x150x55mm, plastic impeller UL.CUL.TUV.CE IP55
15KM23BWHN Axial fan, 230Vac, ball bearing 172x150x55mm, metal impeller UL.CUL.TUV.CE IP55
15KMR23BWHN Axial fan, 230Vac, ball bearing 172x150x55mm, metal impeller, reverse air flow UL.CUL.TUV.CE IP55
17PC23BTHN Axial fan, 230Vac, ball bearing Ø172x51mm, plastic impeller, capacitor start-run UL.CUL.TUV.CE IP55
25GC23BWHN Axial fan, 230Vac, ball bearing Ø254x89mm, plastic impeller
UL.CUL.TUV.CE IP55

特殊客制化服务

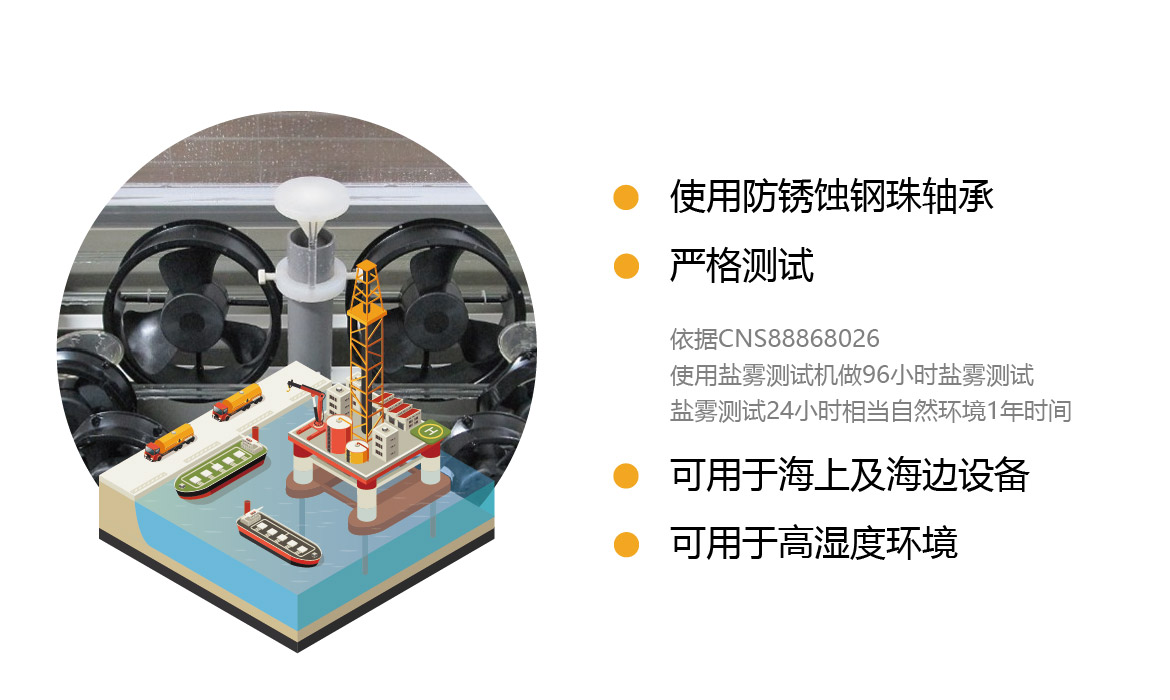

福佑抗盐雾风扇(G)IP68+防盐雾
使用防锈蚀钢珠轴承,防依据CNS8886Z8026使用盐雾测试机做96小时盐雾测试,盐雾测试24小时相当自然环境1年时间,可用于海上及海边设备,可用于高湿度环境。
Alarm Signal Description Size Safety Approval IP Rate
60D23BWHG Axial fan, 230Vac, ball bearing 60x60x30mm, plastic impeller UL.CUL.TUV.CE IP68
12A23BTHG Axial fan, 230Vac, ball bearing 120x120x38mm, plastic impeller UL.CUL.TUV.CE IP68
13A23BWHG Axial fan, 230Vac, ball bearing 120x120x38mm, plastic impeller UL.CUL.TUV.CE IP68
15PC23BWHG Axial fan, 230Vac, ball bearing 172x150x51mm, plastic impeller UL.CUL.TUV.CE IP68
15KC23BWHG Axial fan, 230Vac, ball bearing 172x150x55mm, plastic impeller UL.CUL.TUV.CE IP68
25GC23BWHG Axial fan, 230Vac, ball bearing Ø254x89mm, plastic impeller UL.CUL.TUV.CE IP68

特殊客制化服务

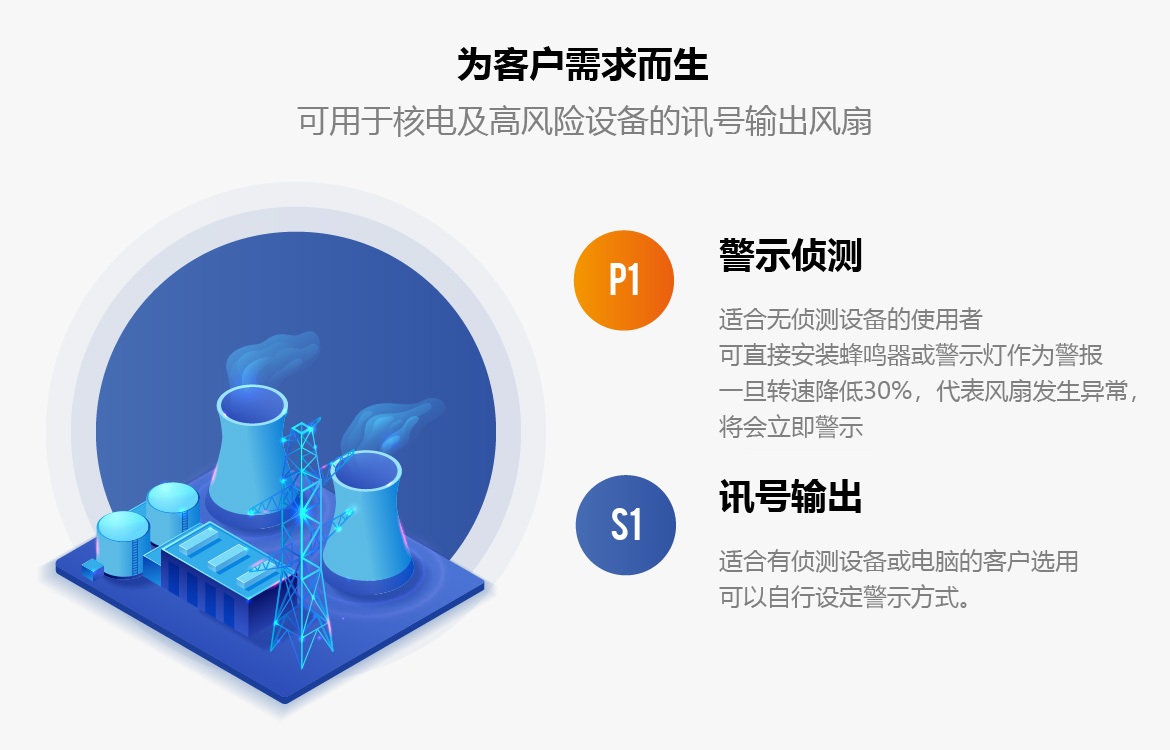

福佑讯号输出风扇
可用于核电及高风险设备的讯号输出风
Alarm Signal Description Size Safety Approval
12A23BTHS1 Axial fan, 230Vac, ball bearing 120x120x38mm, plastic impeller UL.CUL.TUV.CE
15AC23BTHP1 Axial fan, 230Vac, ball bearing 172x150x38mm, plastic impeller UL.CUL.TUV.CE
15PC23BTHP1 Axial fan, 230Vac, ball bearing 172x150x51mm, plastic impeller UL.CUL.TUV.CE
15KC23BTHP1 Axial fan, 230Vac, ball bearing 172x150x55mm, plastic impeller UL.CUL.TUV.CE
16FC23BTHDP1 Axial fan, 230Vac, ball bearing 160x160x62mm, plastic impeller UL.CUL.TUV.CE
18JC23BTHDP1 Axial fan, 230Vac, ball bearing 180x180x90mm, plastic impeller UL.CUL.TUV.CE



Alarm Signal Description Size Safety Approval
12A23BTHS1 Axial fan, 230Vac, ball bearing 120x120x38mm, plastic impeller UL.CUL.TUV.CE
12AM23BTHS1 Axial fan, 230Vac, ball bearing 120x120x38mm, plastic impeller UL.CUL.TUV.CE
15AC23BTHS1 Axial fan, 230Vac, ball bearing 172x150x38mm, plastic impeller UL.CUL.TUV.CE
15PC23BWHS1 Axial fan, 230Vac, ball bearing 172x150x51mm, plastic impeller UL.CUL.TUV.CE
15KC23BTHS1 Axial fan, 230Vac, ball bearing 172x150x55mm, plastic impeller UL.CUL.TUV.CE
15KM23BWHS1 Axial fan, 230Vac, ball bearing 172x150x55mm, plastic impeller UL.CUL.TUV.CE
16FC23BTHDS1 Axial fan, 230Vac, ball bearing 160x160x62mm, plastic impeller UL.CUL.TUV.CE
18JC23BTHDS1 Axial fan, 230Vac, ball bearing 180x180x90mm, plastic impeller UL.CUL.TUV.CE
25GC23BTHS1 Axial fan, 230Vac, ball bearing Ø254x89mm, plastic impeller UL.CUL.TUV.CE

特殊客制化服务

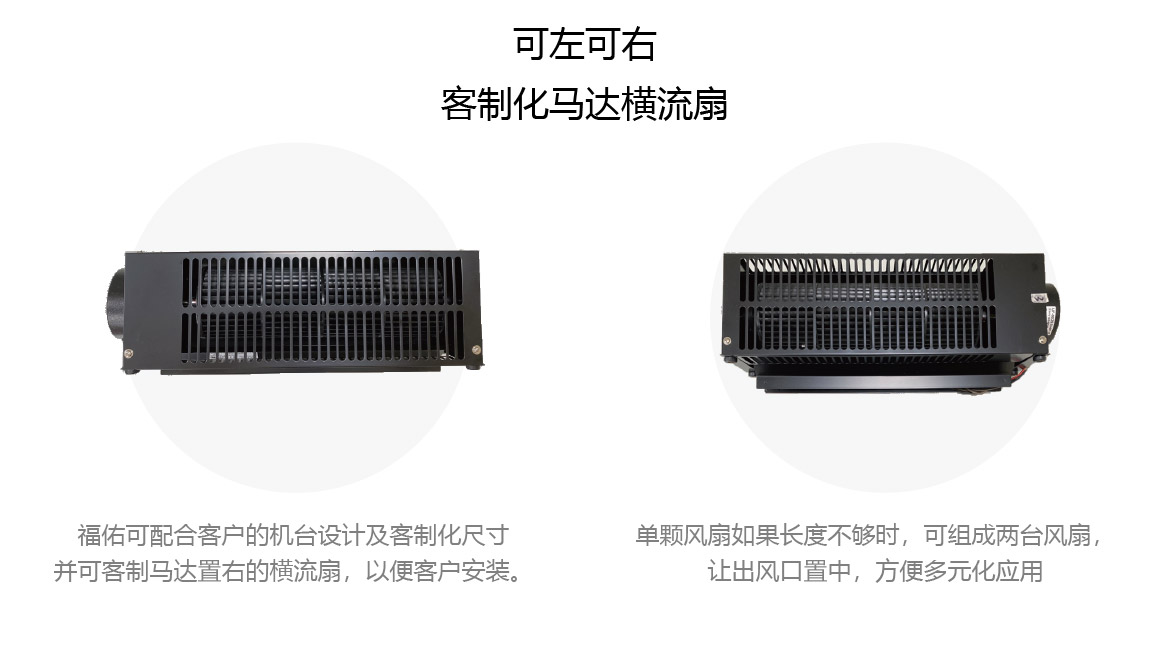

福佑右侧马达横流
Right Side Motor Description Size Safety Approval
6017SBA12MR Cross flow fan, 120Vac, ball bearing 266x100x90mm, aluminum roller CE
9029CBP23HR Cross flow fan, 230Vac, ball bearing 420x150x130mm, plastic roller CE
9060CBP23HR Cross flow fan, 230Vac, ball bearing 740x150x130mm, plastic roller CE

特殊客制化服务

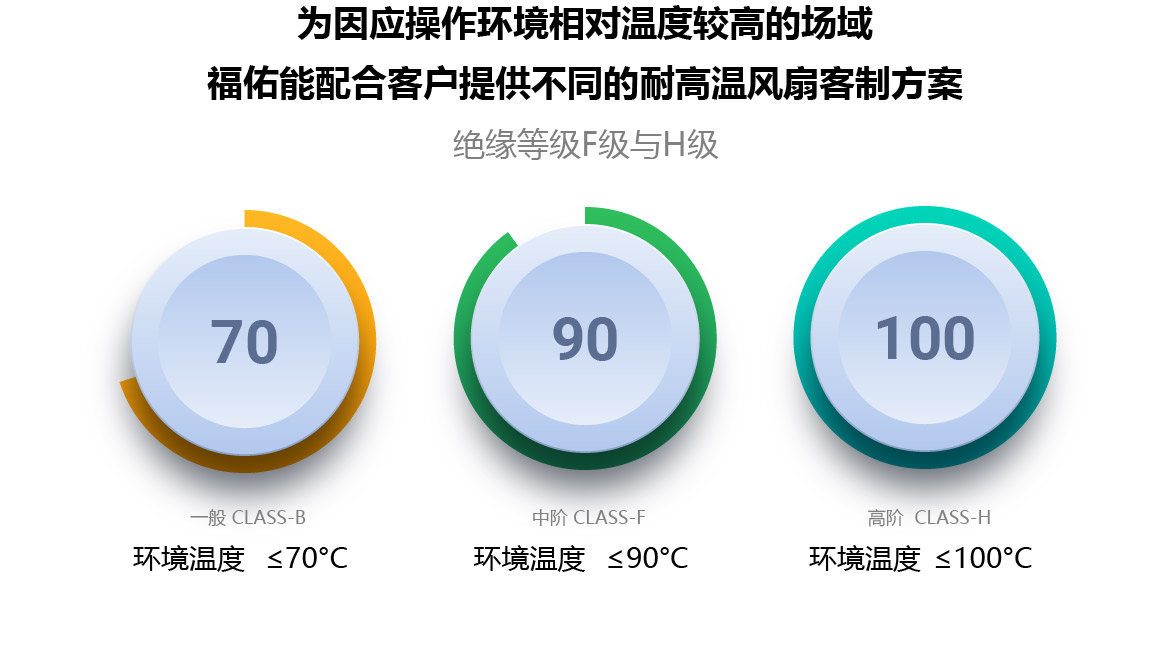

福佑耐高温风扇
為因應操作環境相對溫度較高的場域,福佑能配合客戶提供不同的耐高溫風扇客製方案
Insluation F class-90 degree Description Size Safety Approval
80AM23BTHF Axial fan, 230Vac, ball bearing 80x80x38mm, metal impeller UL.CUL.TUV.CE
92AM23BTHF Axial fan, 230Vac, ball bearing 92.5x92.5x38mm, metal impeller TUV.CE
12AM23BTHF Axial fan, 230Vac, ball bearing 120x120x38mm, metal impeller UL.CUL.TUV.CE
12AMR23BTHF Axial fan, 230Vac, ball bearing 120x120x38mm, metal impeller, reverse air flow UL.CUL.TUV.CE
15KM23BTHF Axial fan, 230Vac, ball bearing 172x150x55mm, metal impeller TUV.CE
15KMR23BTHF Axial fan, 230Vac, ball bearing 172x150x55mm, metal impeller, reverse air flow TUV.CE
25GCM23BTHF Axial fan, 230Vac, ball bearing Ø254x89mm, metal impeller UL.CUL.TUV.CE



Insulation H Class-100 degree Description Size Safety Approval
92AM23BTHH Axial fan, 230Vac, ball bearing 92.5x92.5x38mm, metal impeller CE
12AM23BTHH Axial fan, 230Vac, ball bearing 120x120x38mm, metal impeller CE
