Axial Fan

UF92AM Series

Frame/Housing: Aluminum die-casting
Impeller: Plastic PBT PC,nylon or metal
Bearing System: Ball bearing or sleeve bearing
Motor: Shaded pole or capacitor start-run
Connection: Lead wire or termnal type
Protection: Impedance-Protected or Thermally-Protected
Dielectric withstand voltage: Above 10MΩ, DC500V
Life Expectancy: Ball bearing:Over 40,000 hr.(at 40°C)
Sleeve bearing:Over 15,000 hr.(at 40°C)
Safety Approval: CUL, CE, TUV, either UL or ETL
Description of Model No.
UF 12 A (R) 11 B T H N
1 2 3 4 5 6 7 8 9


Get Latest Price
UF92AM11-H UF92AM23-H
Rated Voltage 115 V 230 V
Frequency 50/60 Hz 50/60 Hz
Input Power 12/11 W 12/11 W
Rated Current 0.13/0.11 A 0.06/0.05 A
Locked Current 0.19/0.17 A 0.09/0.08 A
Speed 2700/3200 RPM 2700/3200 RPM

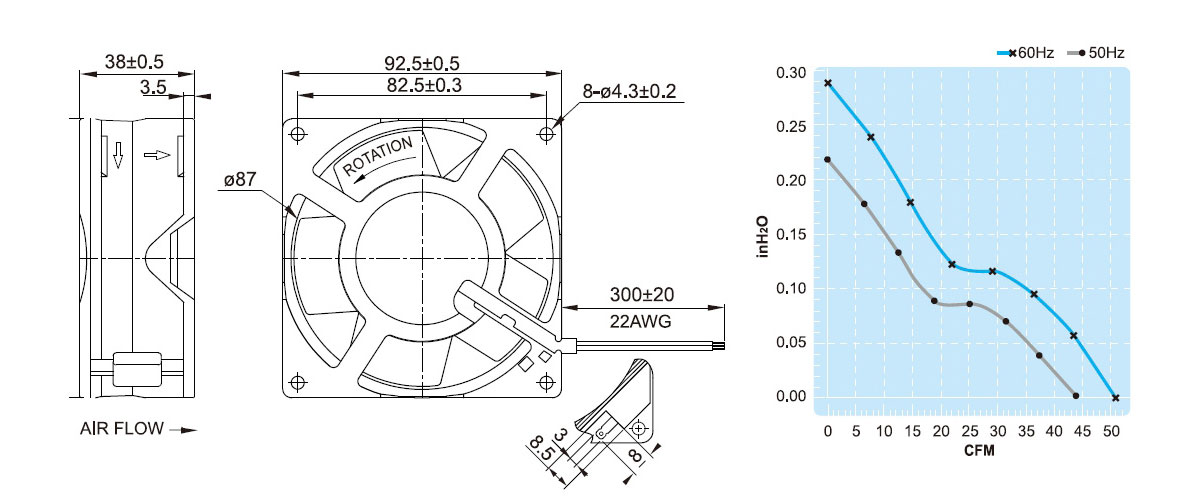

Maximum Air Flow 1.25/1.45 m3/min. 1.25/1.45 m3/min.
Maximum Air Flow 44/51 CFM 44/51 CFM
Maximum Pressure 6/7.5 mmH2O 6/7.5 mmH2O
Maximum Pressure 0.24/0.3 InchH2O 0.24/0.3 InchH2O
Noise 37/42 dB 37/42 dB
Weights 0.43 kg 0.43 kg
SAFETY APPROVAL
